Complex packaging line for PET bottles

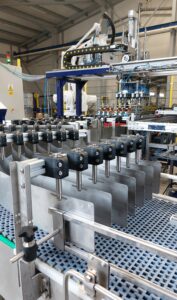

| Basic description | Robotic placement of PET bottles into prepared cartons and subsequent palletizing.
Inserting of pallet corners during wrapping by robots. |
|
Performance of the PET filler
|
8000 bottles/hour = 8 pallets/hour
4 pallets/hour from Mix PET line |
| Guaranteed device performance | 8000 bottles/hour = 8 pallets/hour
4 pallets/hour from Mix PET line |

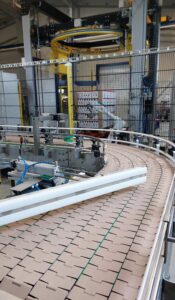

| Handled goods – dimensions, weights, orientation on Atrima interface input | Bottle infeed – loose bottles on the conveyor. |
| Product | Bottle 320 ml- 436 kg, 1 carton-15 pcs, 5 layers, 1200 pcs/pallet, 80 cartons
400 ml bottle – 450 kg, 1 carton-12 pcs, 6 layers, 1008 pcs/pallet, 84 cartons |
| Carton dimensions | Carton for 400ml and 320ml bottles |
| Dimensions of inserts
The insert is not placed on an empty pallet |
1100x750mm |
| Pallet – type, size, max. height, orientation | EUR |

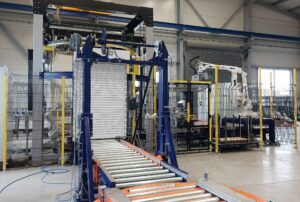

| Wrapping with insertion of paper corners using two robots | YES |

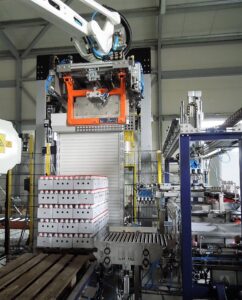

| Paletizing robot | IRB 460-110/2.4 / |
| Corner inserting robots | IRB 1300-7/1.4 |
| Change of assortment | Automaticky |
