Robotic palletization and depalletization of KEG barrels
Powerful palletising and depalletizing equipment of KEG barrels for brewery.
The device consists of:

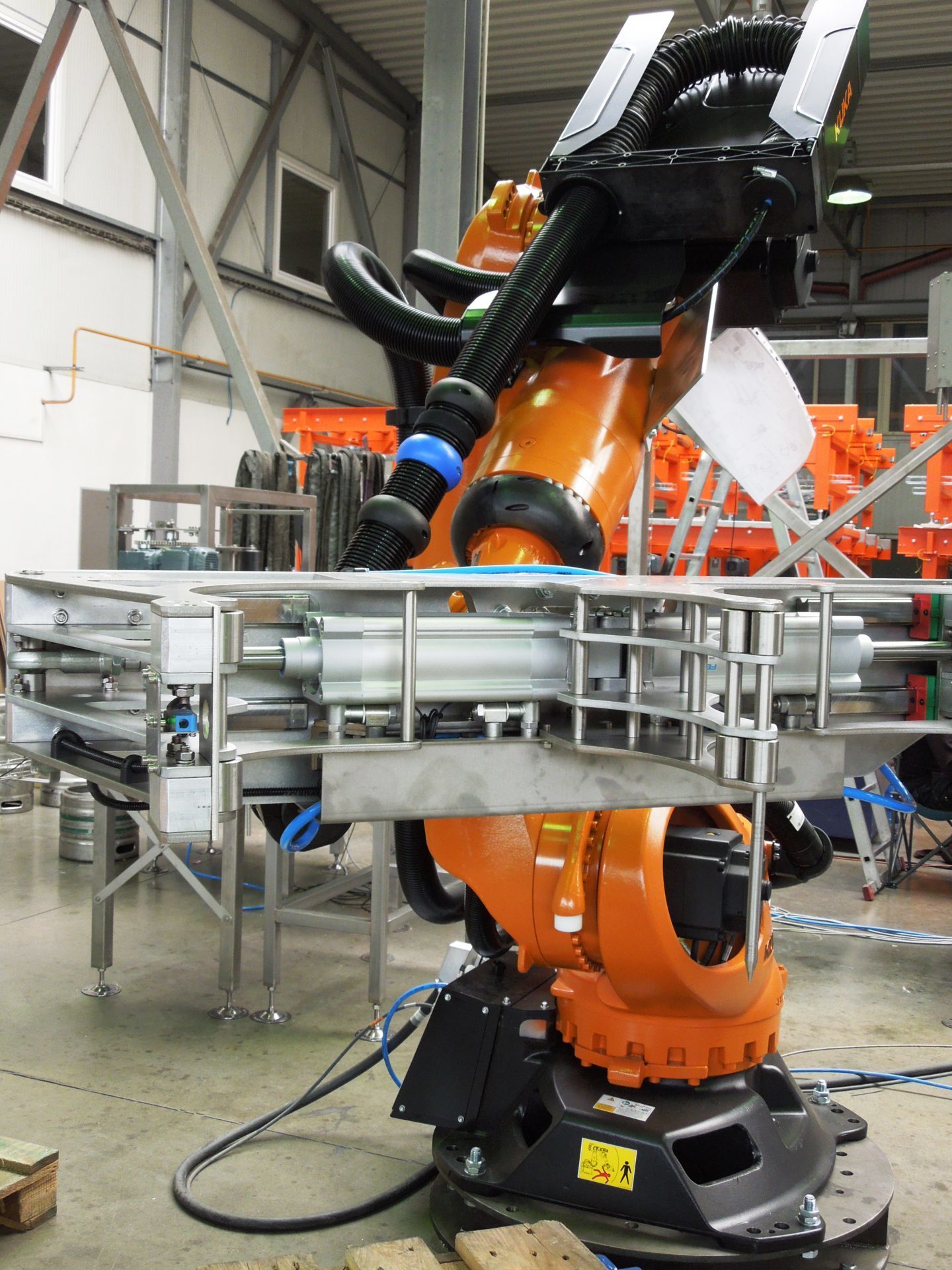

- robot KR 240
- capper

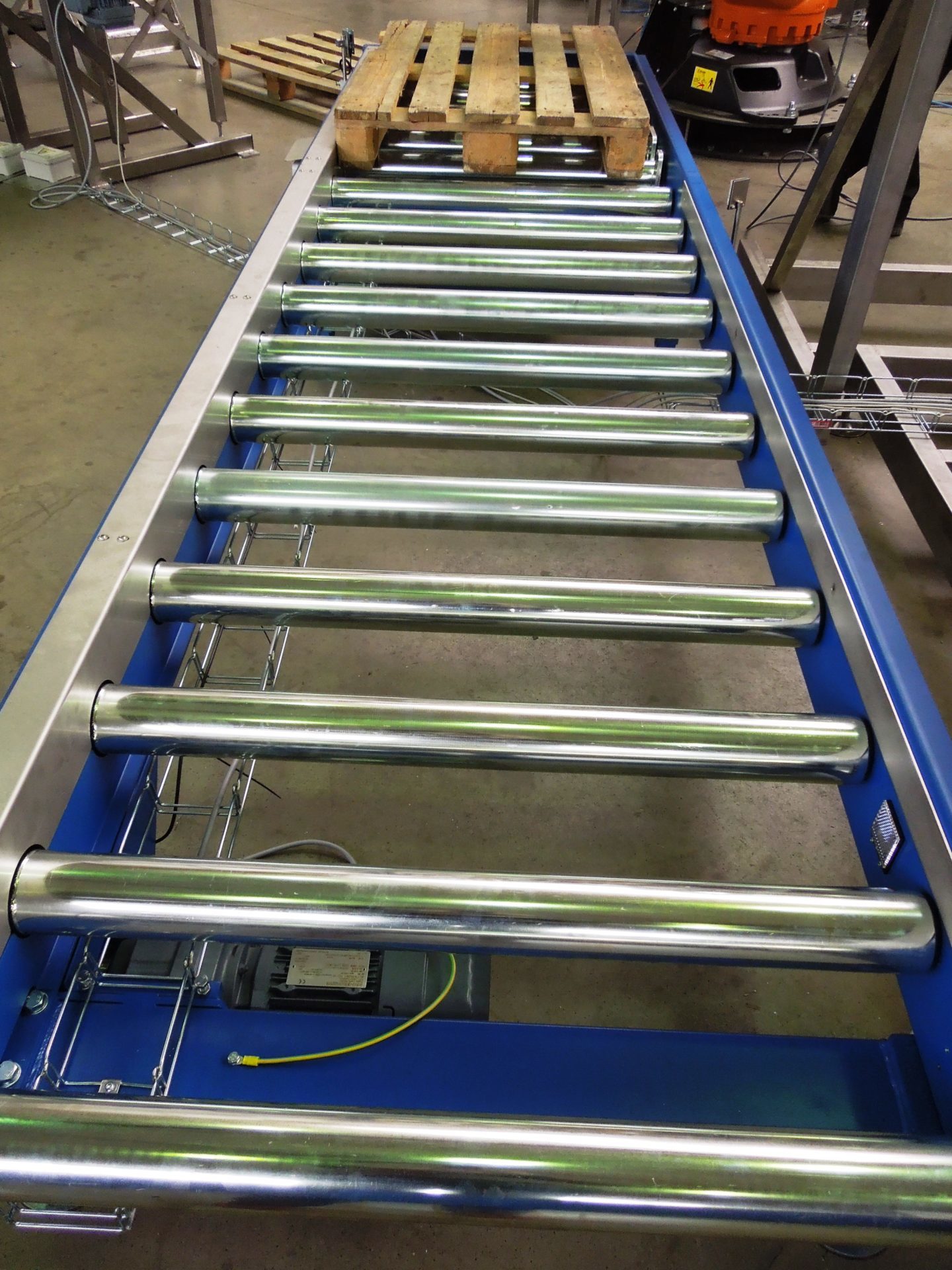

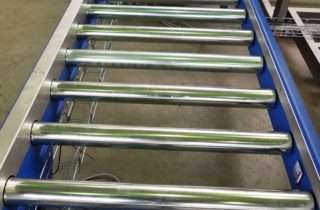

- roller pallet conveyor

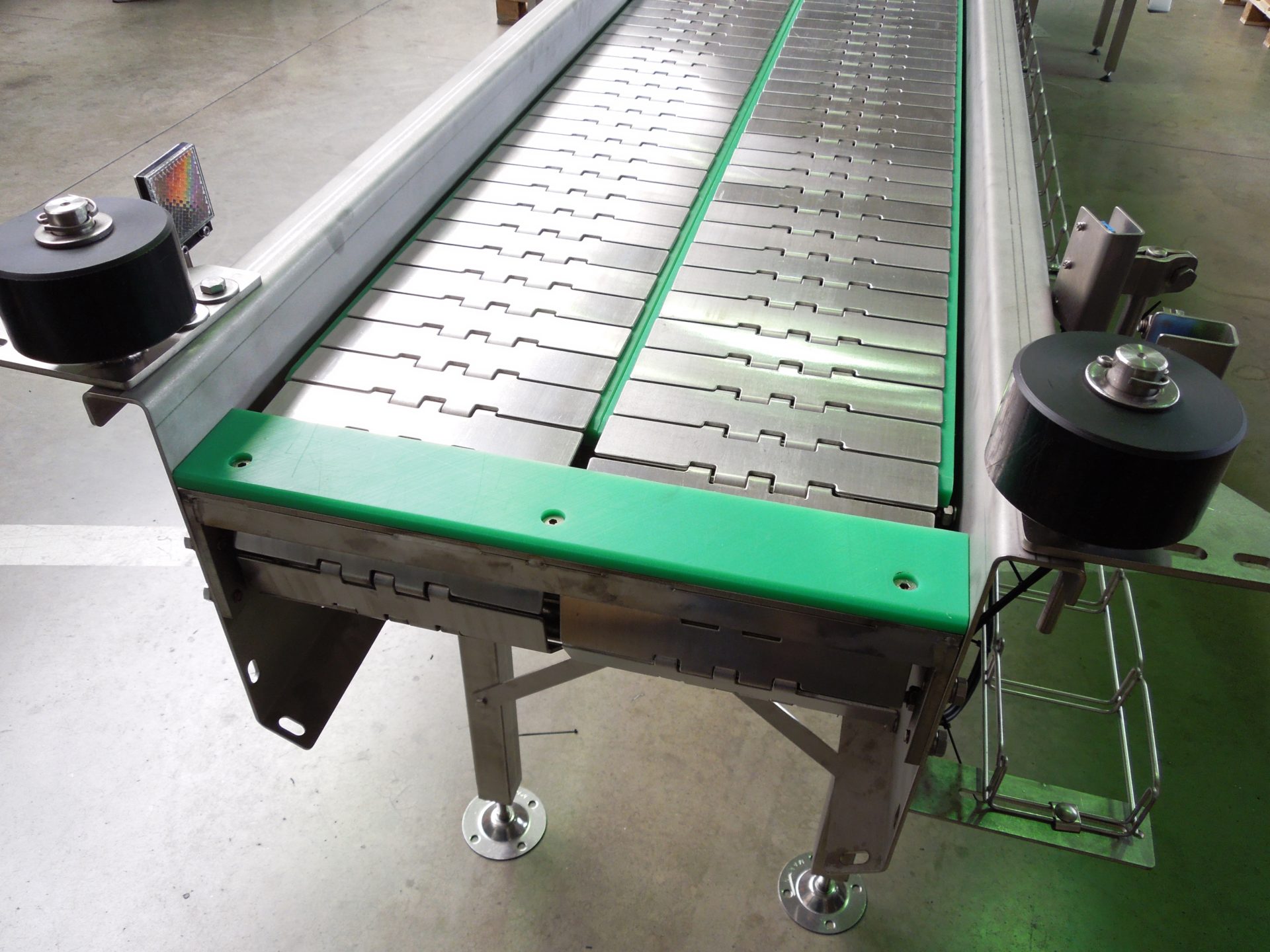

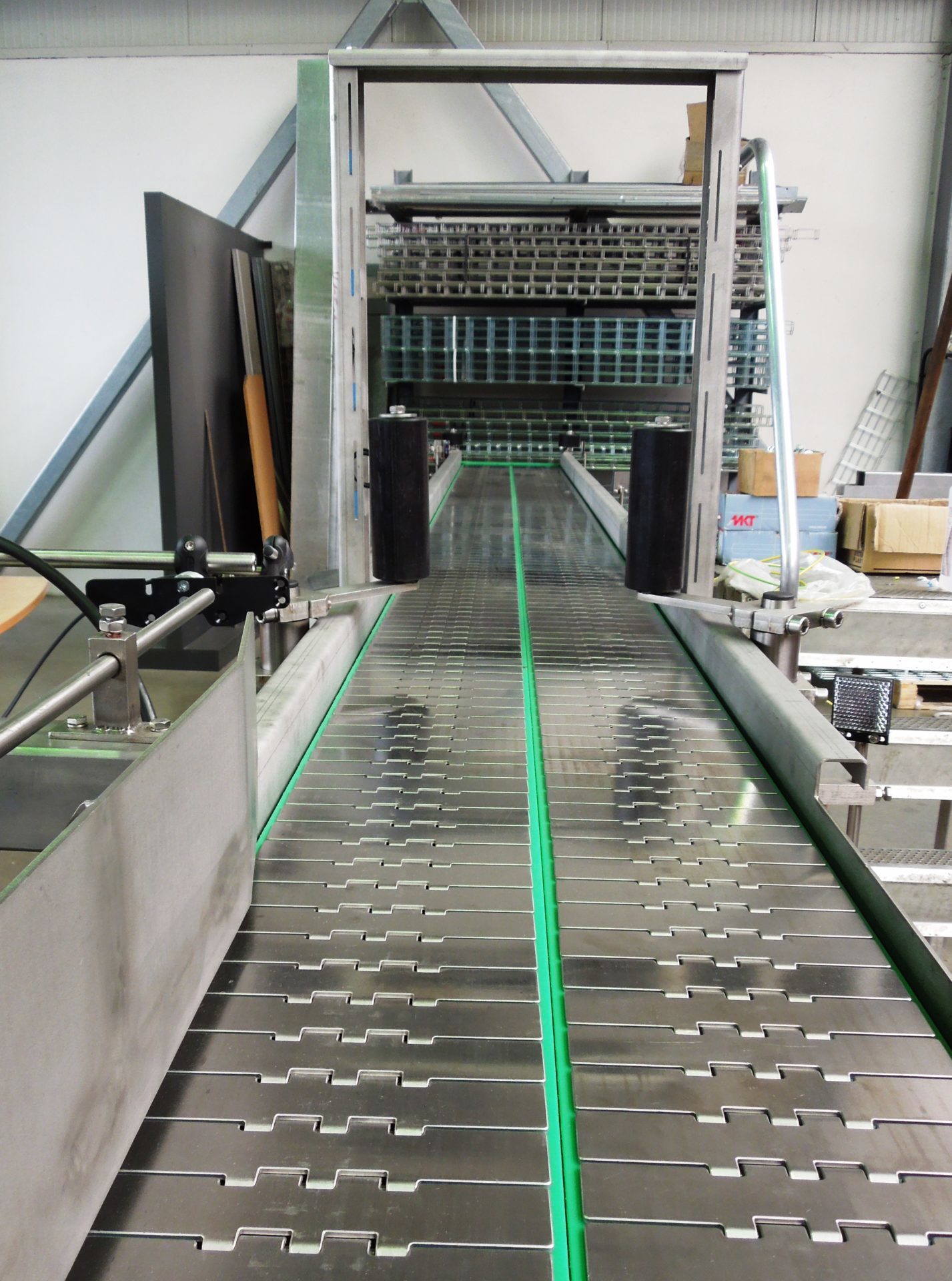

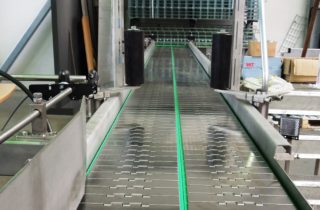

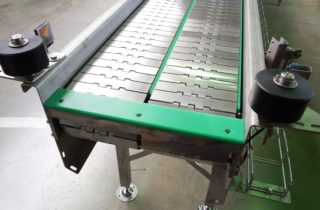

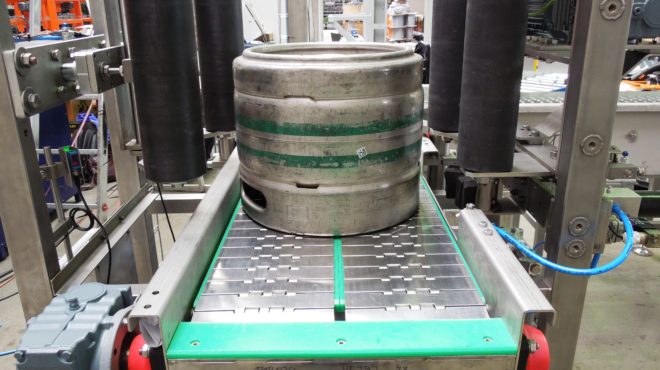

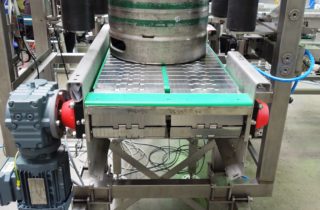

- plate conveyor of KEG barrels
- security fencing
Basic specification |
|
| Power of the filler | Palletization 80 KEGS/hour + Depalletization 80 KEGS/hour |
| Guaranteed machine performance | Palletization 80 KEGS/hour + Depalletization 80 KEGS/hour |
| Manipulated goods – dimensions, weight, orientation | KEGS 50/30/20 due DIN (diameter 365 mm, H605)
Barrels 50/30/20 type „KEG+ (black, plastic)“ D 370 mm |
| Orientation on the belt | Fitting down, fitting up on pallet |
| Number of products on the layer | 6 |
| Number layers | 1 |
| Pallet – type, size, max height, orientation | EURO |
| Conversion of the machine to various assortments | Manual / Semi-automatic / Automatic |
| – air | 6 bar |
| – electricity | 3 x 400 V, 230V, 50 Hz |
| Operating temperature range | from +5°C to +40°C |

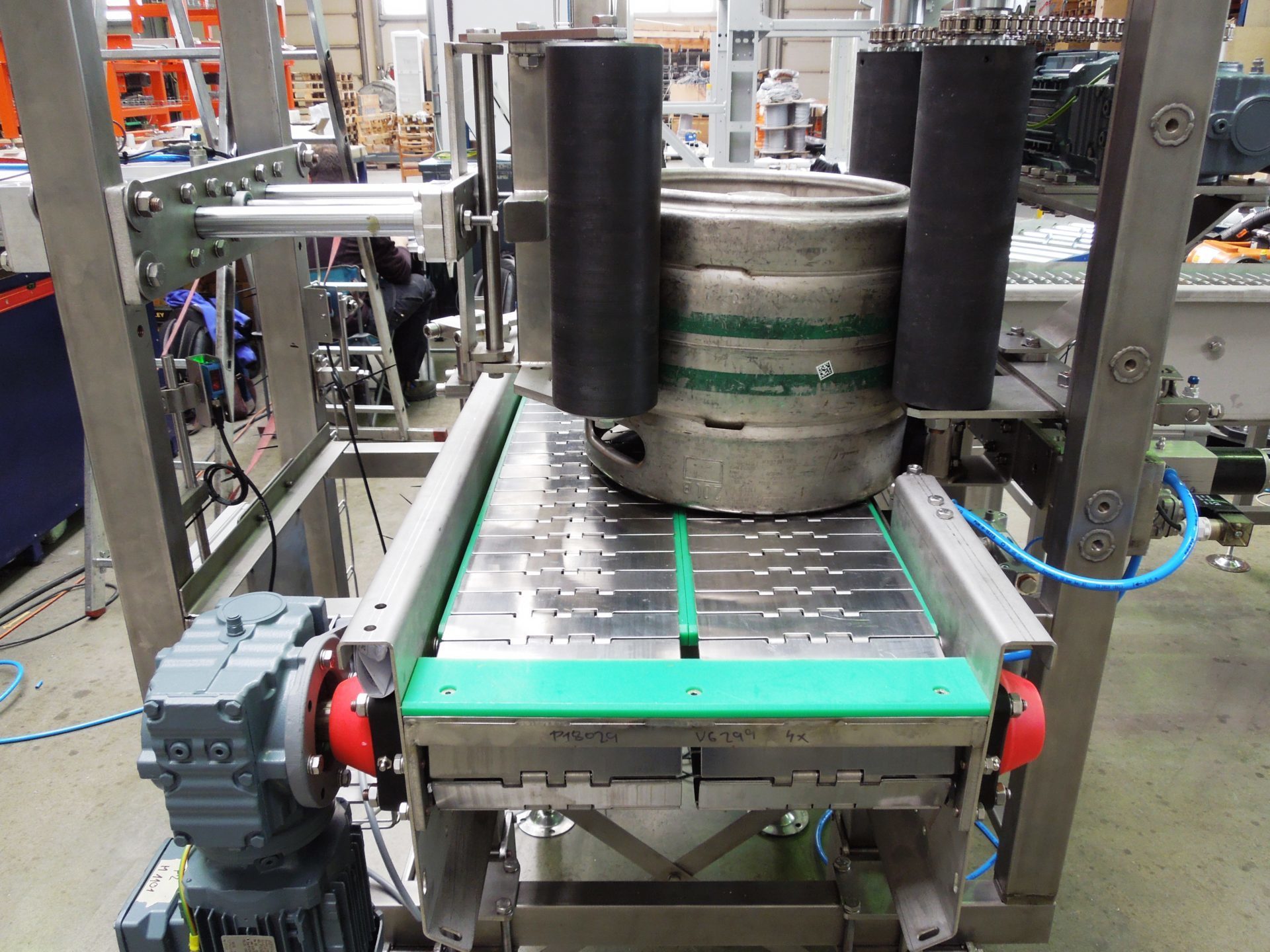

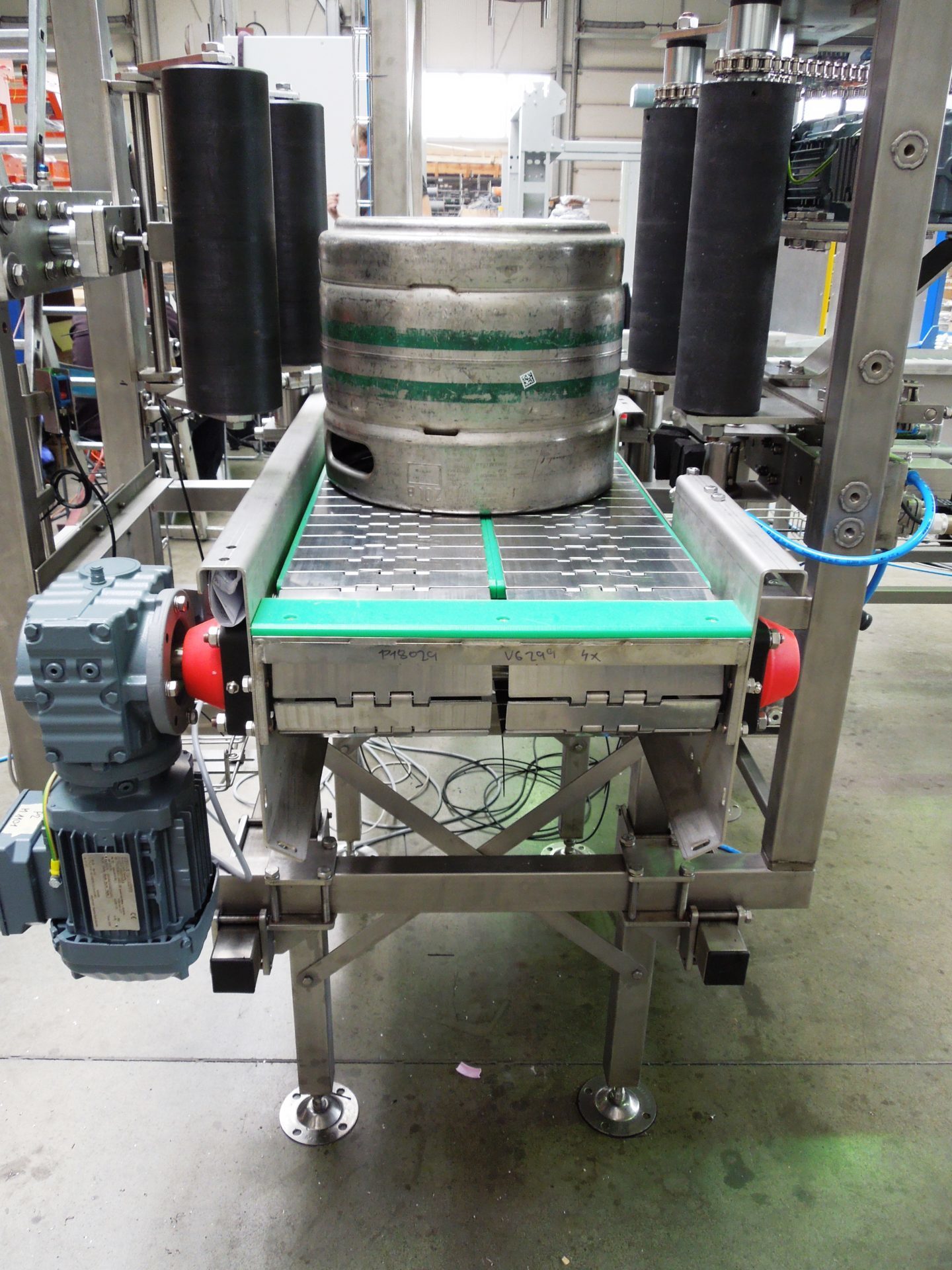

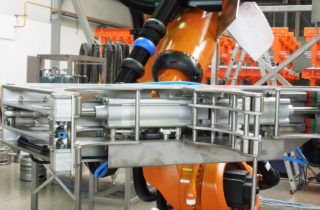

Photo: Capper and robotic workplace.
