RAFT CONVEYOR

TRANSPORT OF RAFTS ON A CHAIN, ROLLER, VERTICAL CONVEYOR FOR A CUSTOMER ABROAD.

RAFT CONVEYOR

THE SET CONSISTS OF:

  • Chain conveyor
  • Roller conveyors

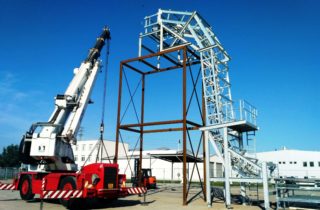

  • Vertical conveyor

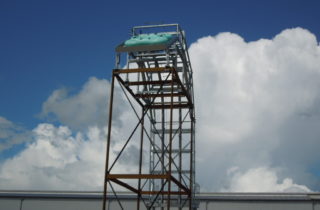

  • Raft carrier on a vertical conveyor
BASIC DESCRIPTION Raft conveyor
Guaranteed machine performance Cycle 1 raft max 30 sec.

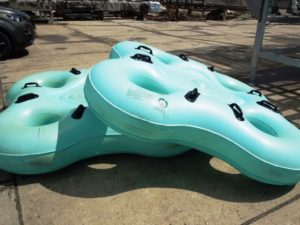

Handled goods Rafts
Electric drives SEW
Transmission oil type Standard
Pneumatic elements FESTO

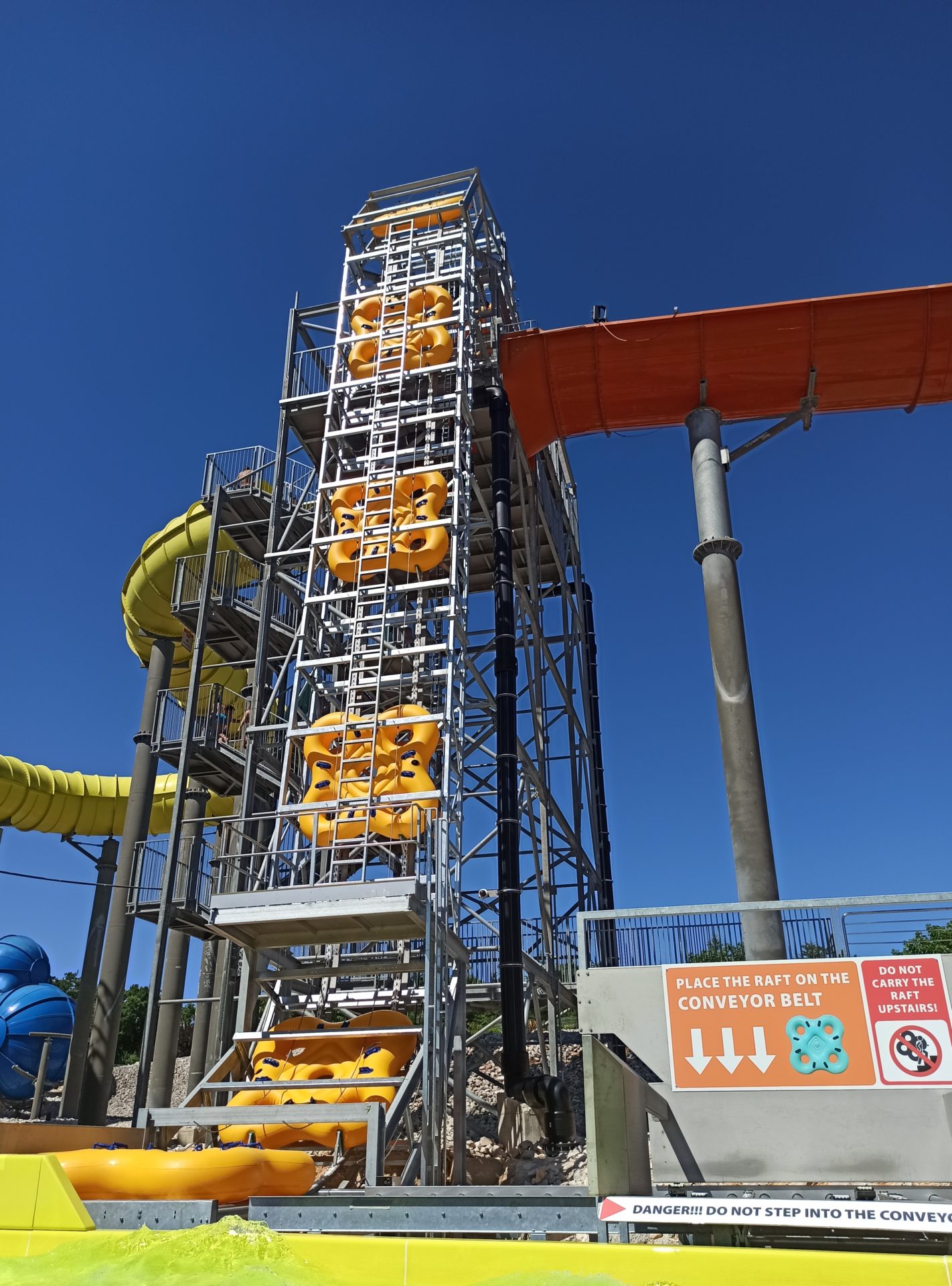

Part of our delivery is also a board at the place of loading with pictograms on how to place the raft on the conveyor and with pictograms to prohibit entry into the conveyor area.

ACTIVITY DESCRIPTION :

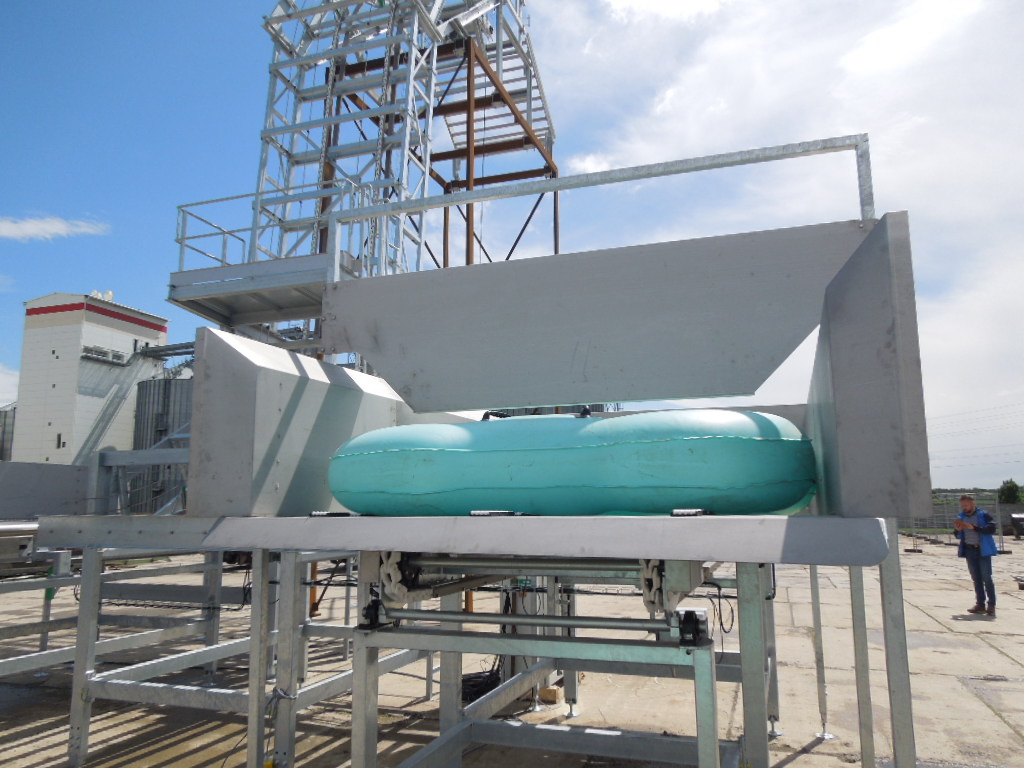

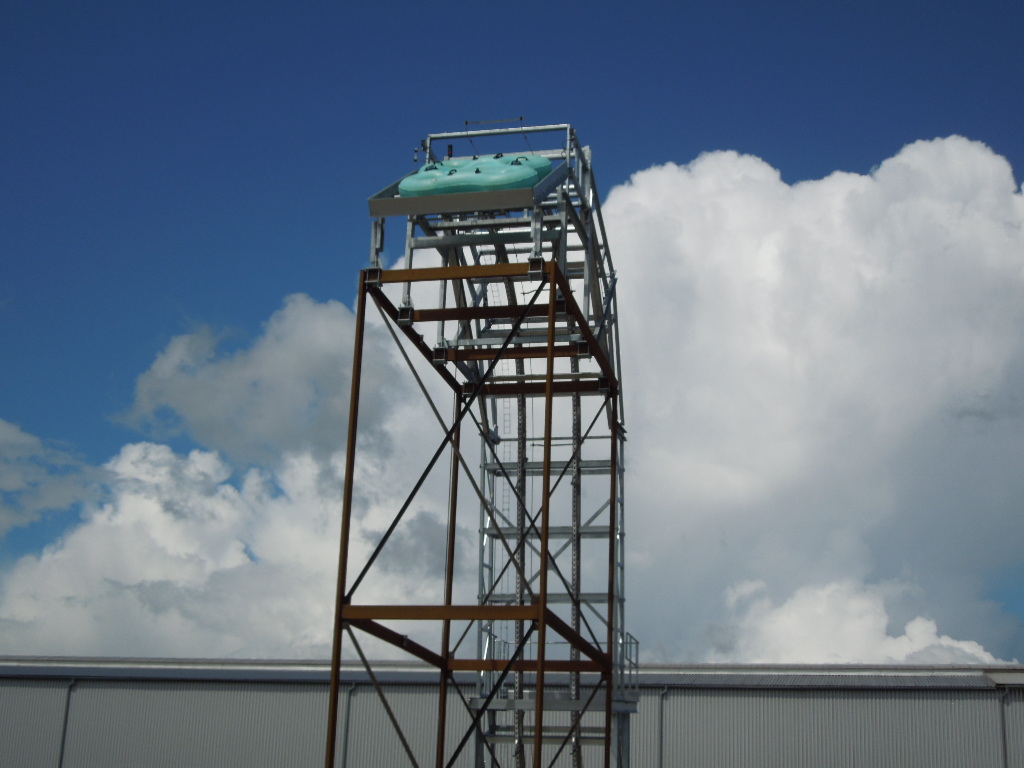

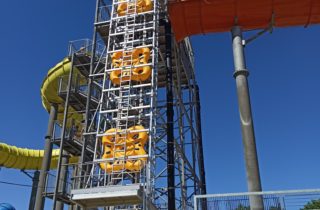

After reaching the pool, the customer places the raft on the chain conveyor of the inverter. It reaches the end of the chain conveyor and then the inverter lowers and places the raft on the second conveyor. The rafts pass on roller conveyors to a vertical conveyor. The vertical conveyor will work in two modes. In mode 1, the conveyor waits for a new raft to arrive before moving the raft up one more position, if the exit position is unoccupied. In mode 2, the vertical conveyor immediately transports the rafts to the upper position if the exit position is empty.

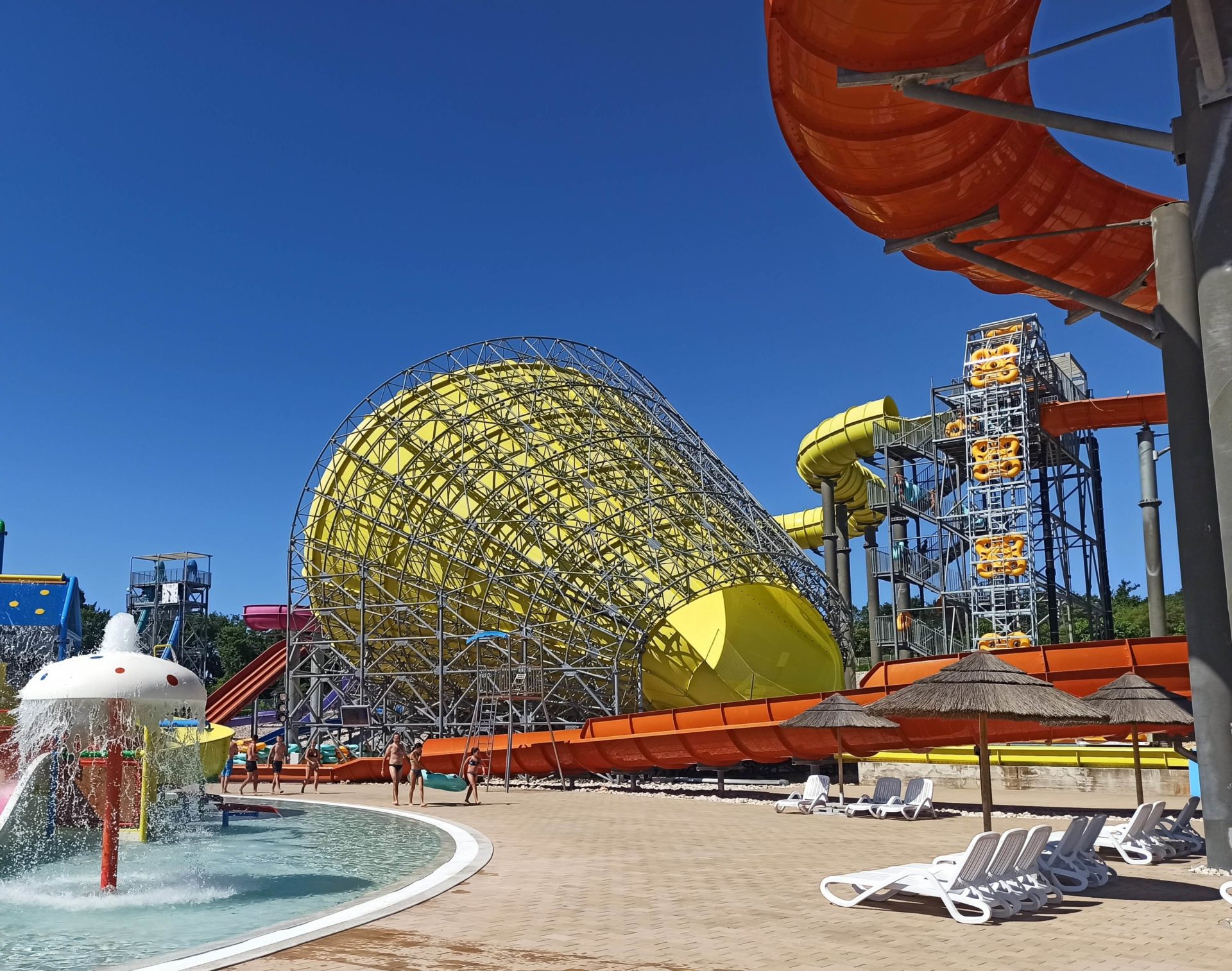

The device works to the customer’s satisfaction in the entertainment park.
