Palletization of glasses and cartoning equipment

Powerful and reliable robotic palletization line for dairy.

Palletization of glasses and cartoning equipment

BENEFITS: HIGH PERFORMANCE, MODULAR CONSTRUCTION, FLEXIBILITY, MINIMUM STOPPED AREA

MACHINE IDENTIFICATION: AP 154
1A   Basic description

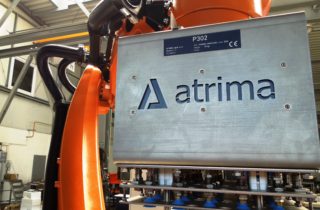

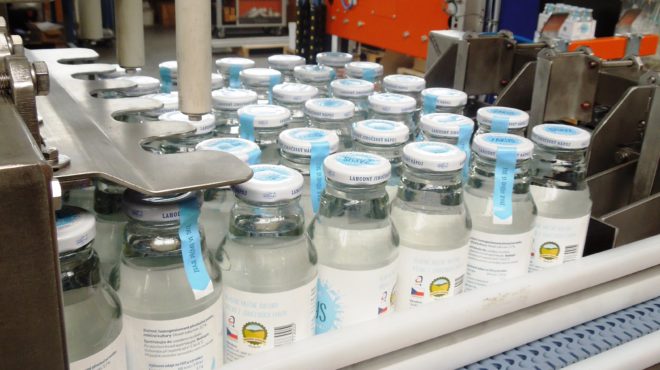

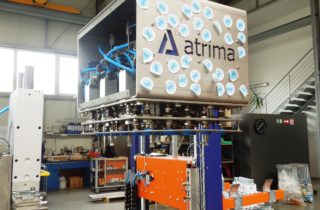

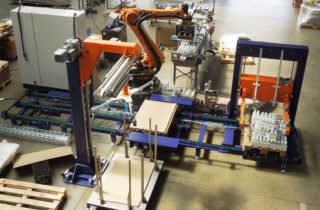

1A1 Basic description We supply cartoning machine RADPAK + palletization. .We grab the glasses with suction head  and put them in cartons.Then we put everything on a pallet. Interleayers are inserted between layers by an external Interlayer magazine

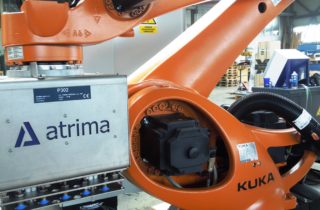

Robot is KUKA

1A2 Power of the filler 8000 glasses/hour.There are 10 glasses in the carton = max 5,5 kg / carton, 3 cartons + 1 x 1 carton are transferred simultaneously.
1A3 Guaranteed machine performance 800 cartons/hour.
1A4 Manipulated goods- dimensions, weight, orientation at the Atrima interface input At the exit from the cartoning machine- orientation long side forward.Cartons

Glasses

1A6 Number of products on the layer 19 cartons
1A7 Number of  layers 10/5
1A8 Interlayers – size, number, location on the pallet 1180 mm x 750 mm
1A9 Pallet – type, size, max height, orientation EURO
