Low level palletizer AP111

Another low-level AP 111 palletizer has been completed and is ready for the customer.

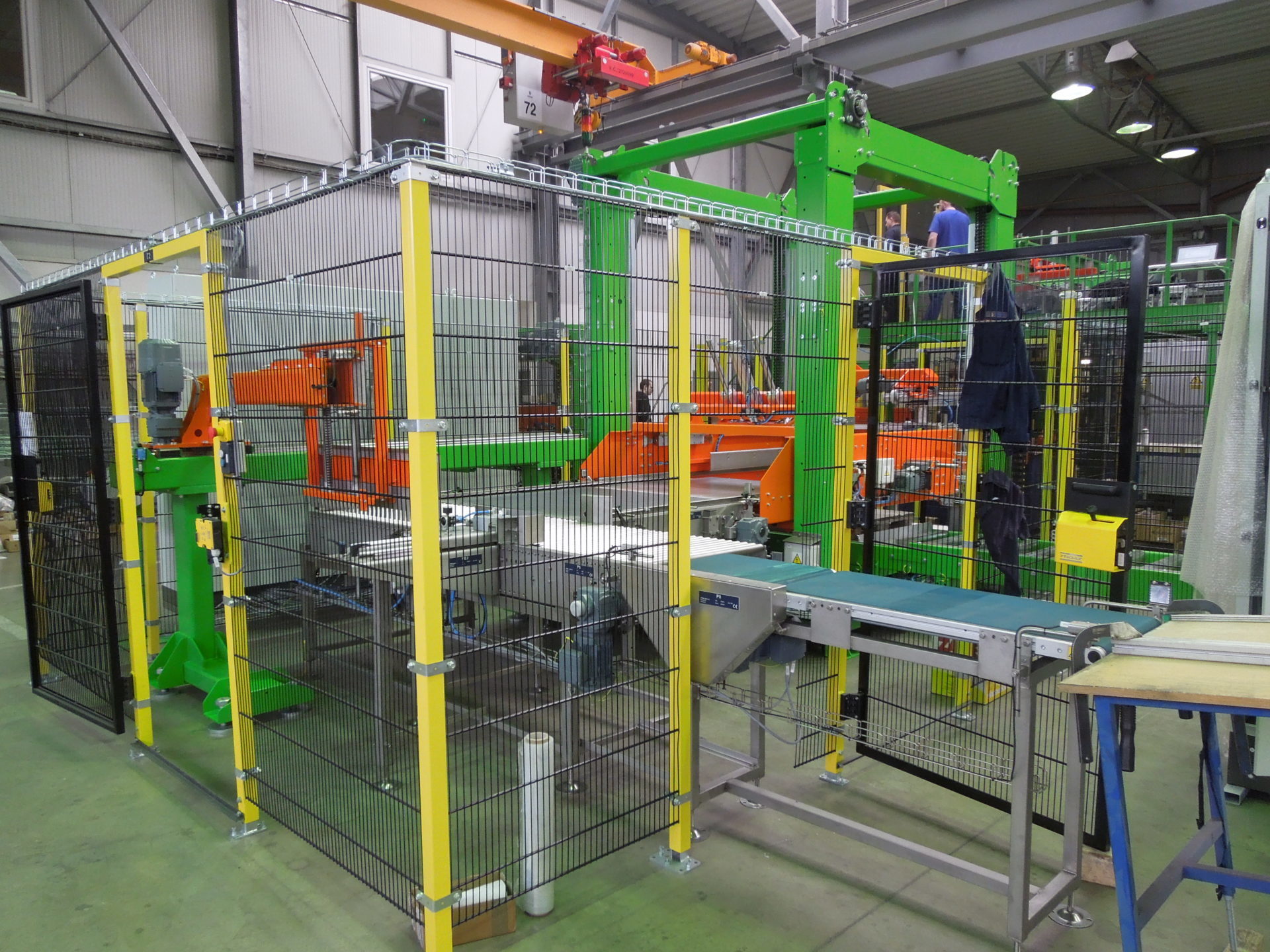

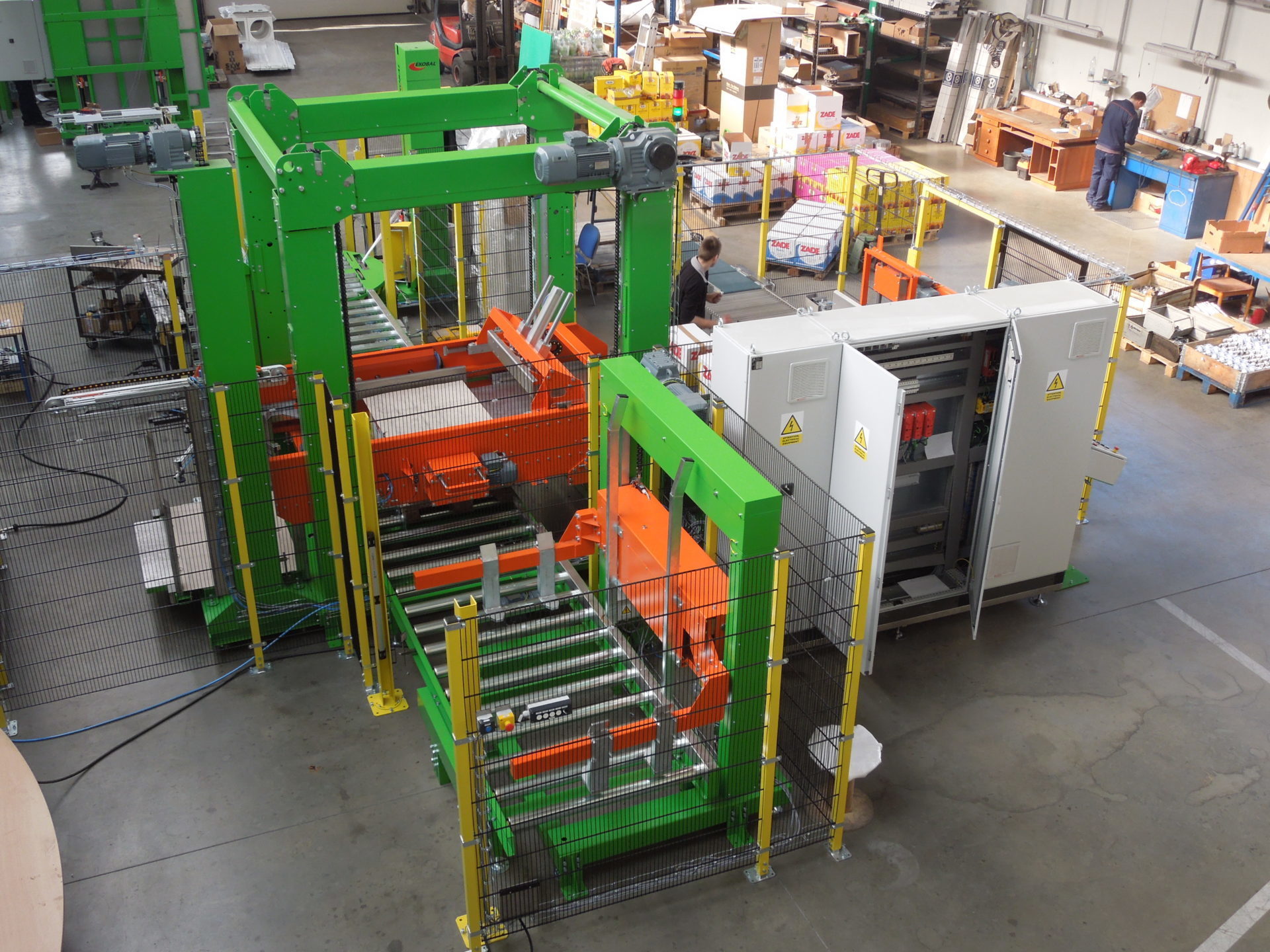

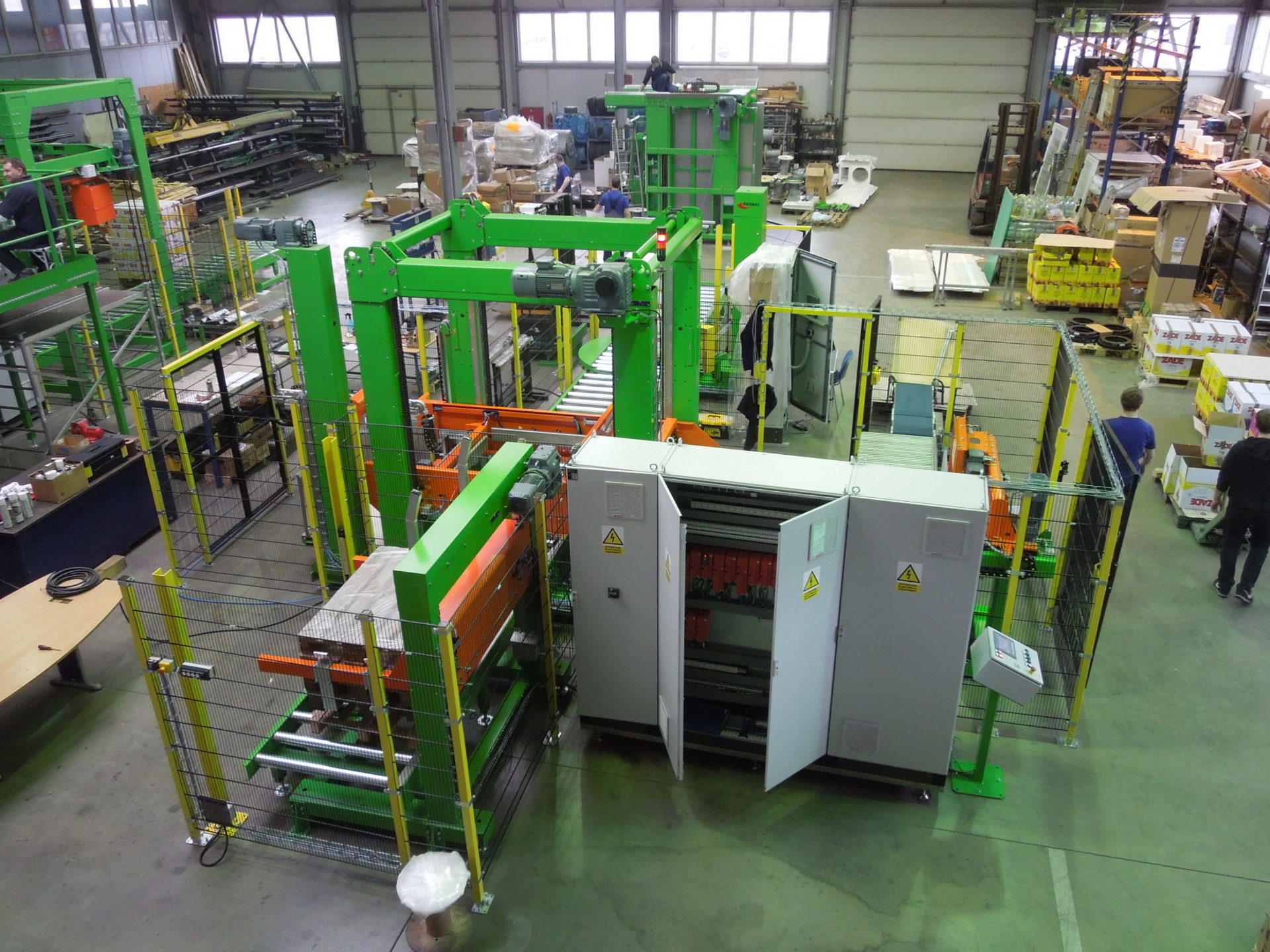

Low level palletizer  AP111

We have used a frame palletizer with low infeed. The robust and rigid frame ensures reliable operation and long lifetime by minimal maintenance. The main advantage is cost effectivness and minimal area.

The company ATRIMA has designed efficient and technicaly unique solution of palletization with this AP 111 palletizer. The result is 100% technological effectivity, trouble-free operation and high working safety.

Basic specification PET palletizer AP 111 with infeed conveyors and 2 separating stoppers
Guaranteed machine performance 12.000 bottles/hour
Handled goods Glass or PET bottles in carton or on tray-shrink pack.
Pallet dimensions, material EUR pallet – Wooden pallet 1200 x 800mm x 144 mm.
Maximum height of full pallet 1800 mm including pallet
Number of empty pallets in the stack  10
Transport height of pallet 500 mm
Transport height of product 900 mm
Shift operation 3 shifts

List of components:

  • Separation conveyor
  • Roller conveyors
  • Forming table with shifter
  • Interlayer sheet applicator
  • Pallet magazine

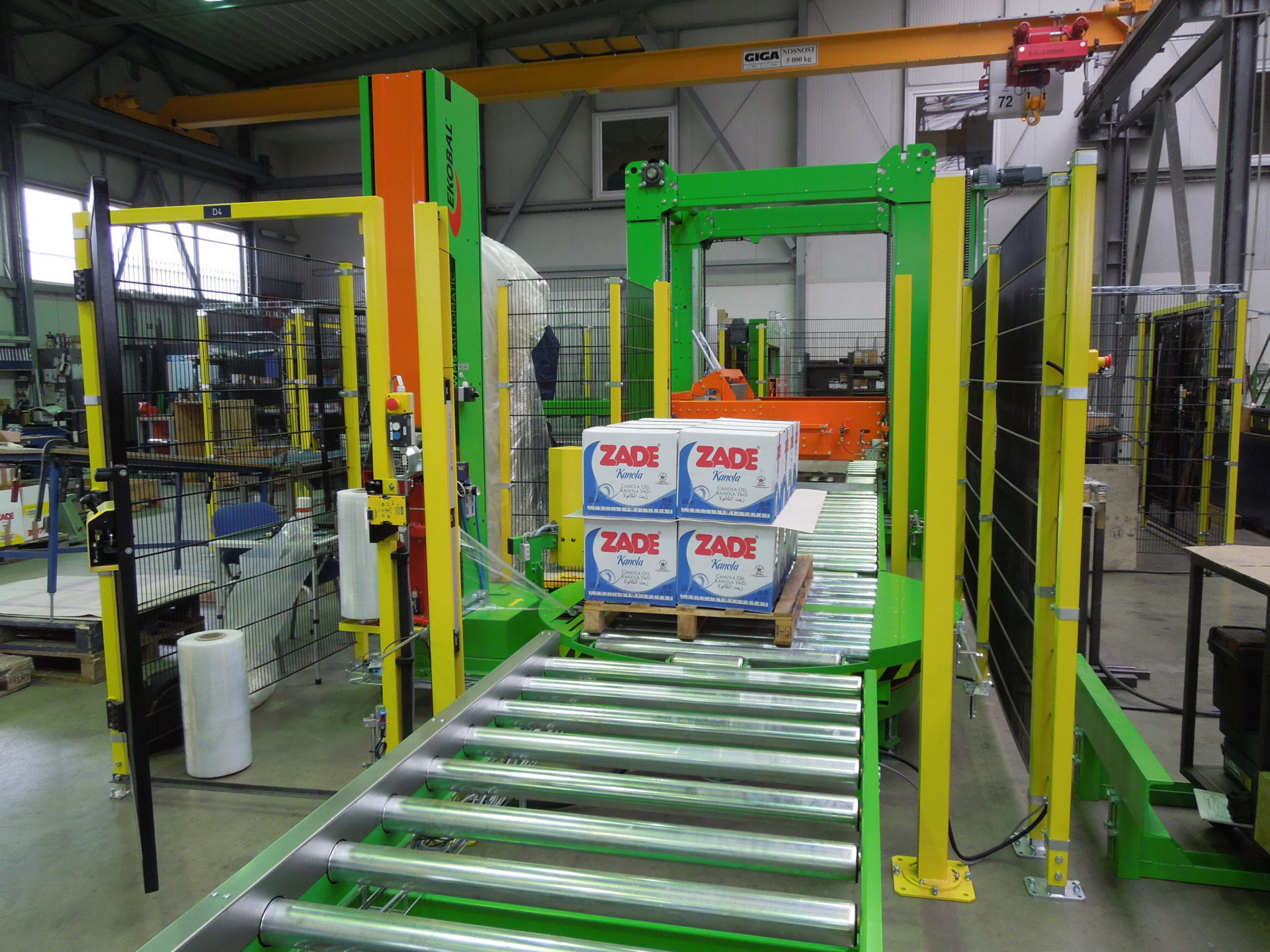

  • Wrapping machine
