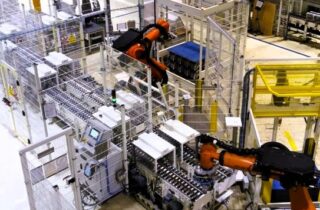

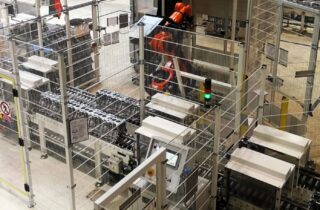

Depalletization of engine blocks

EFFICIENT DEPALLETIZATION OF THE ENGINE BLOCK FOR AUTOMOTIVE IN THE CZECH REPUBLIC.

Our advantages: SPEED, RELIABILITY, COMPLEXITY, EFFICIENCY, LONGEVITY, SERVICE

Thanks to the installation of the robot, it is possible to switch to multi-shift operation and, at significantly reduced costs, to significantly increase production capacity, increase production and build a stronger market position.

Basic description

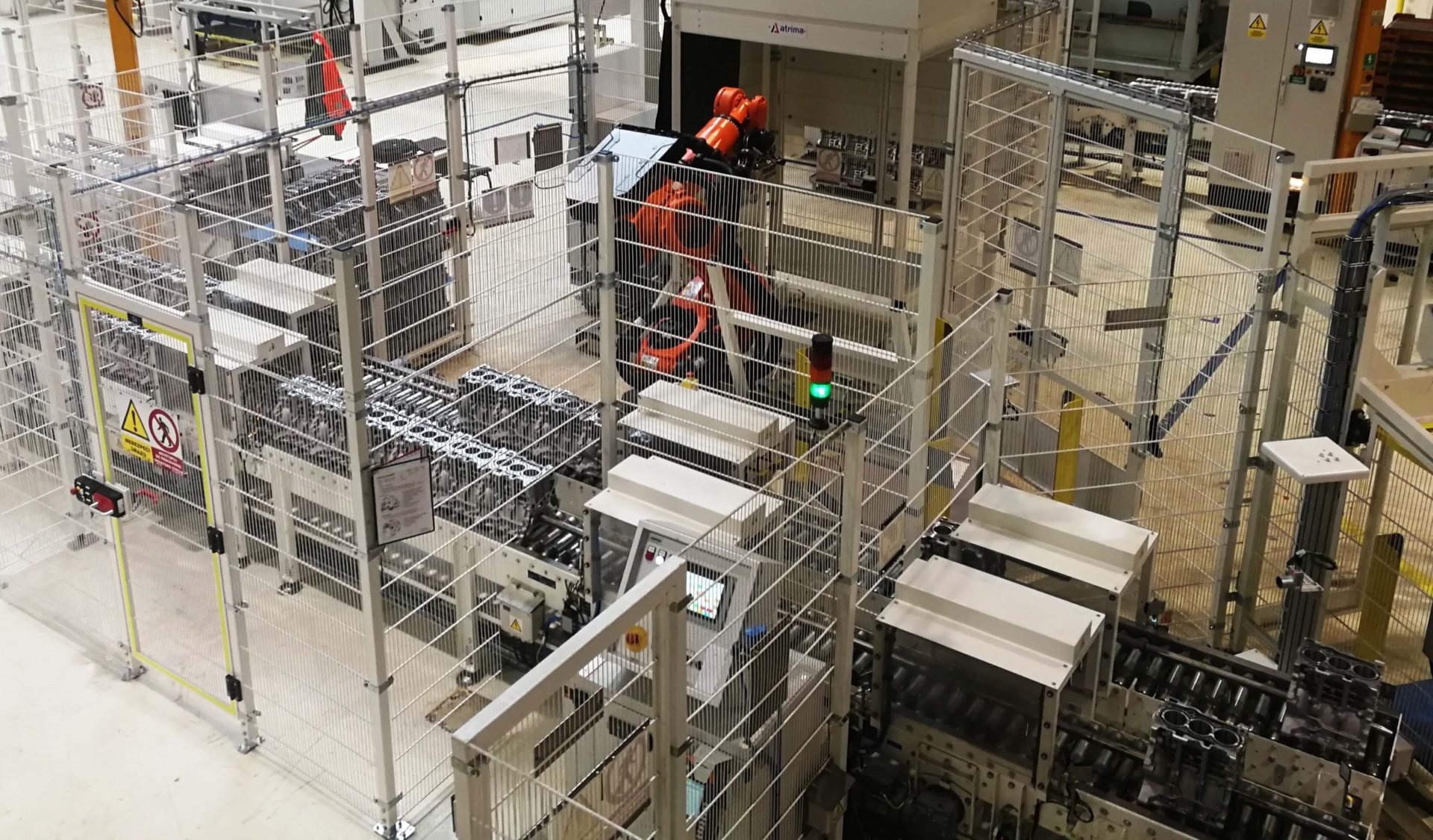

The depalletization workplace consists of:

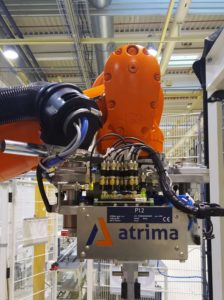

robot with gripping jaws
position for loading a pallet with blocks
position for loading pallets for stacking trays
grippers for handling trays, including a gripper table
a 3D scanner is located above the position for loading the pallet with blocks

Cycle	Depalletization cycle 20-25 sec.
Manipulated goods – dimensions, weights, orientation at the entrance of the Atrima interface	Engine blocks
Number of products per layer	12
Number of layers	4
Pallets	1200 x 1000 x 165 mm
Pallet height	1269 mm
Trays- size, number and location on the pallet	Plastic trays 1180 x 980 x 8 mm. Weight cca 10 kg.
Assortment change	Automatically
