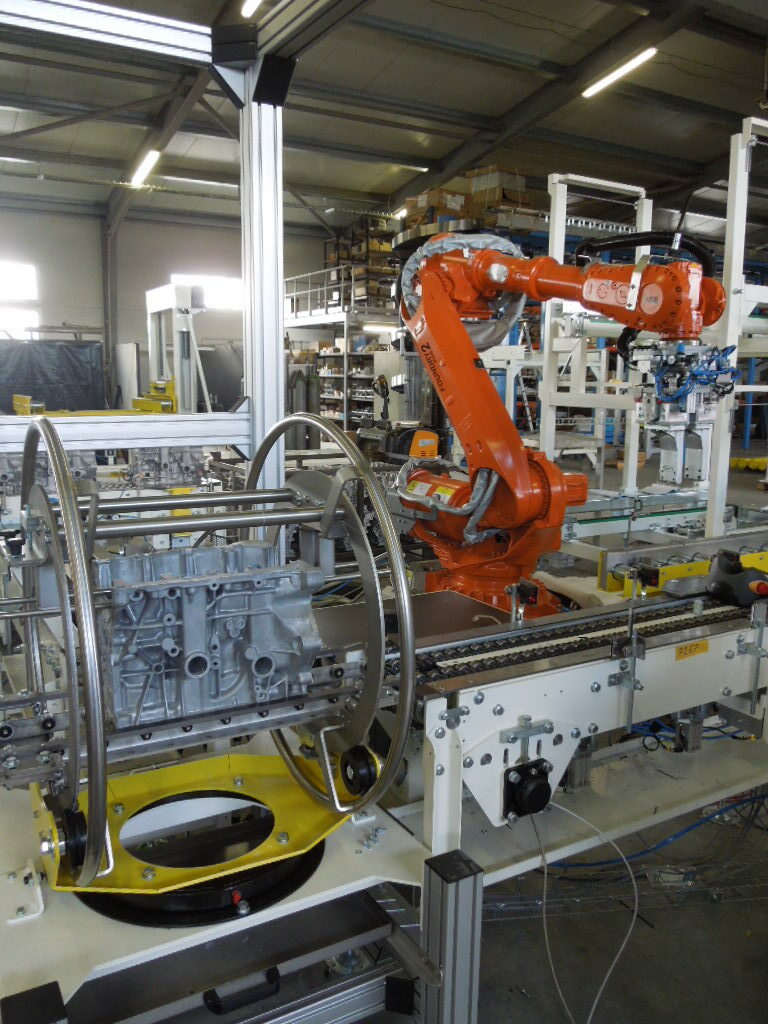

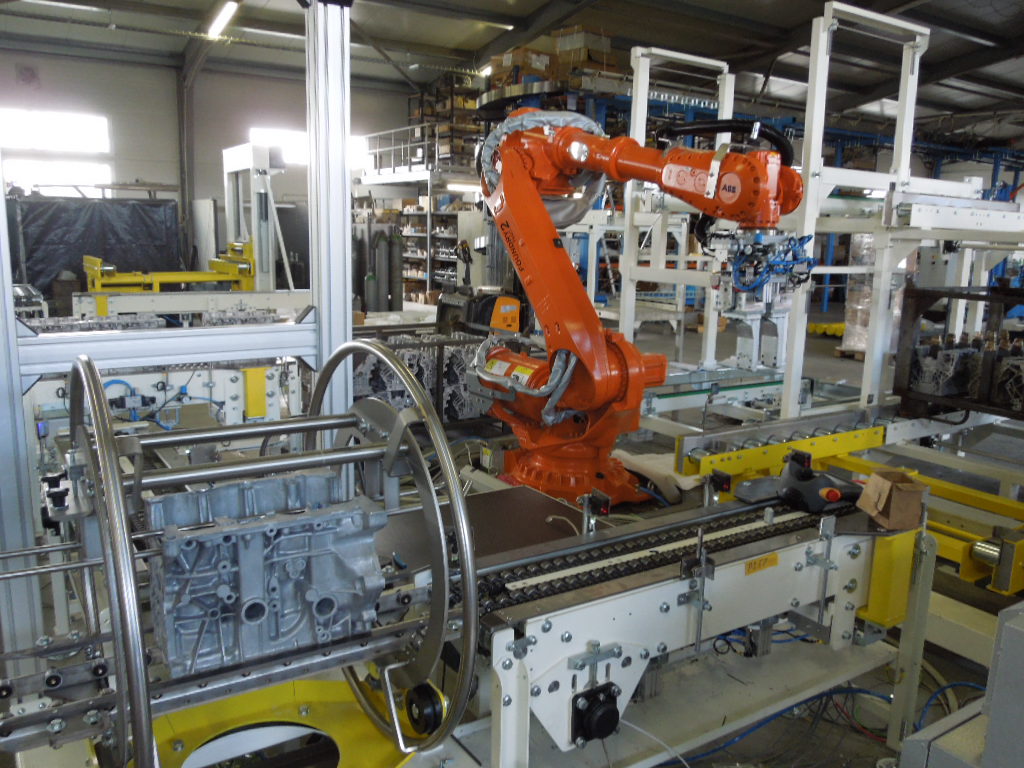

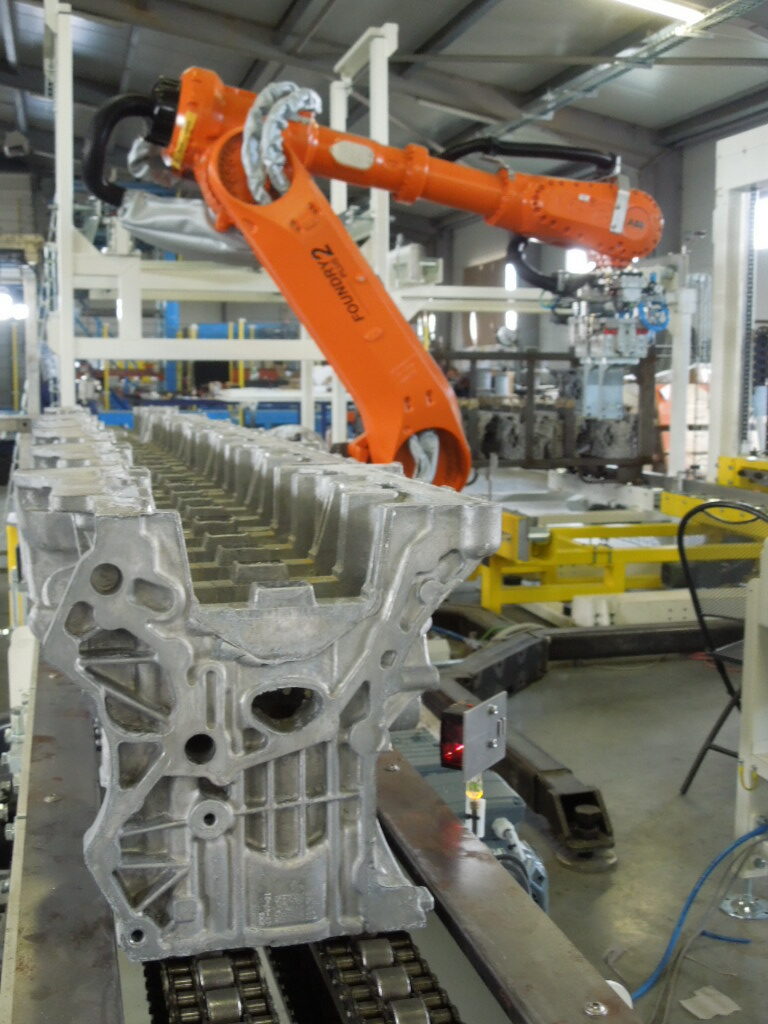

Robotic palletization of engine blocks
High-performance robotic device for automating casting workplaces for automotive.
ADVANTAGES: high performance, flexibility, minimum built-up area
| Basic description | There are two workplaces

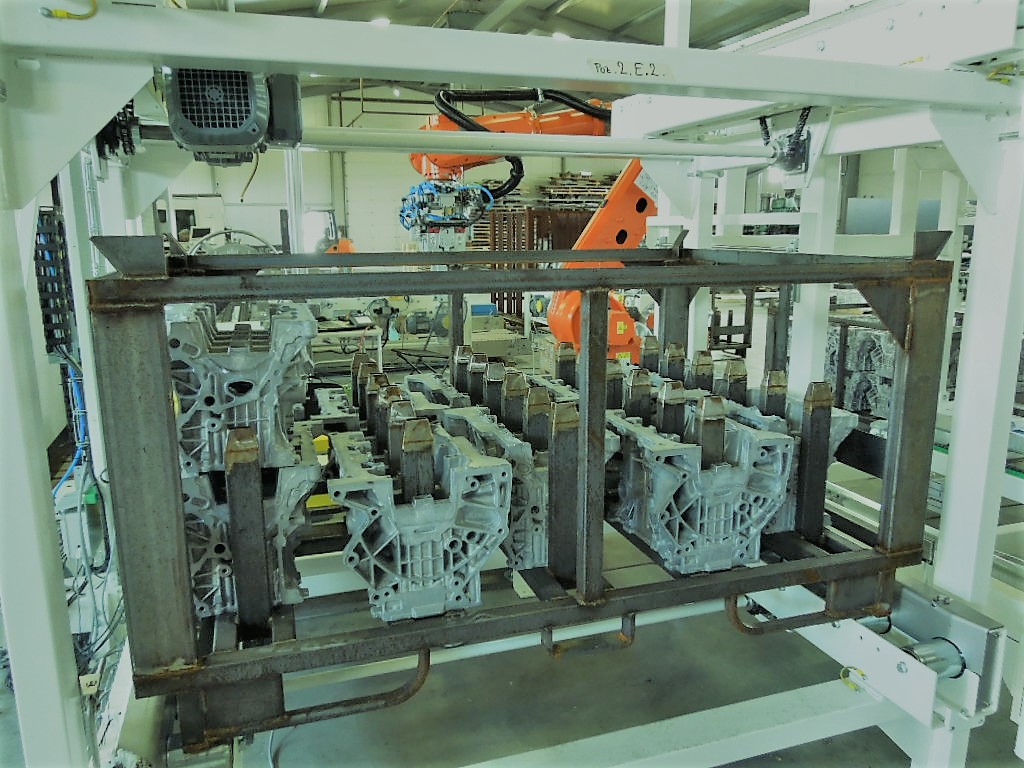

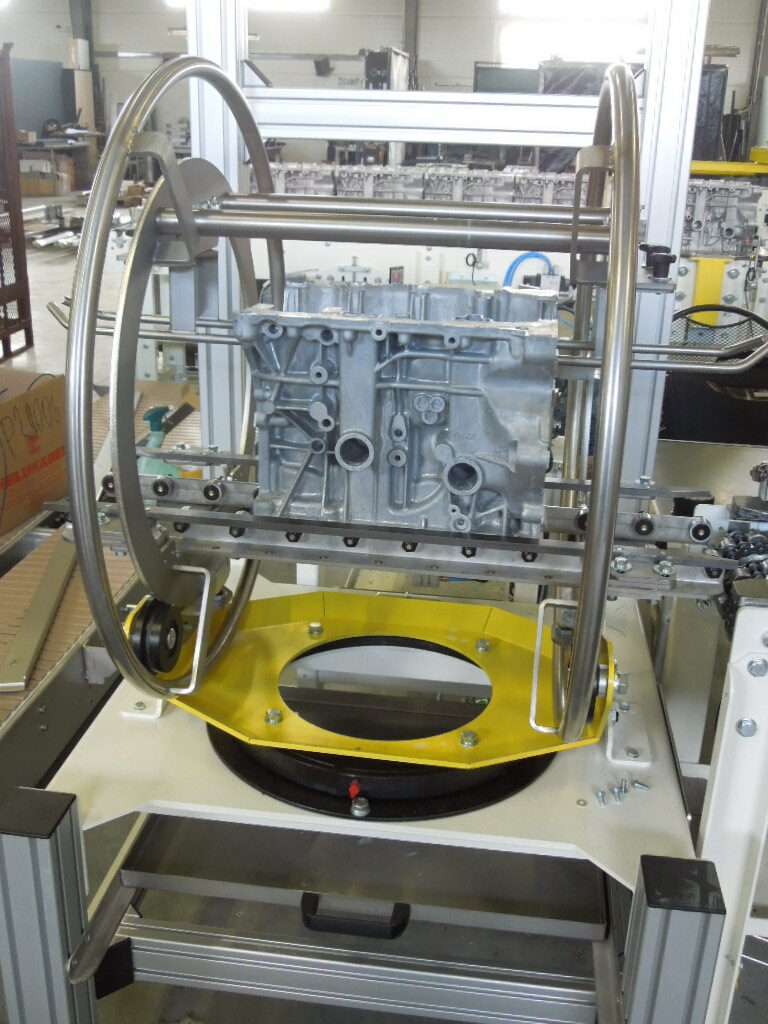

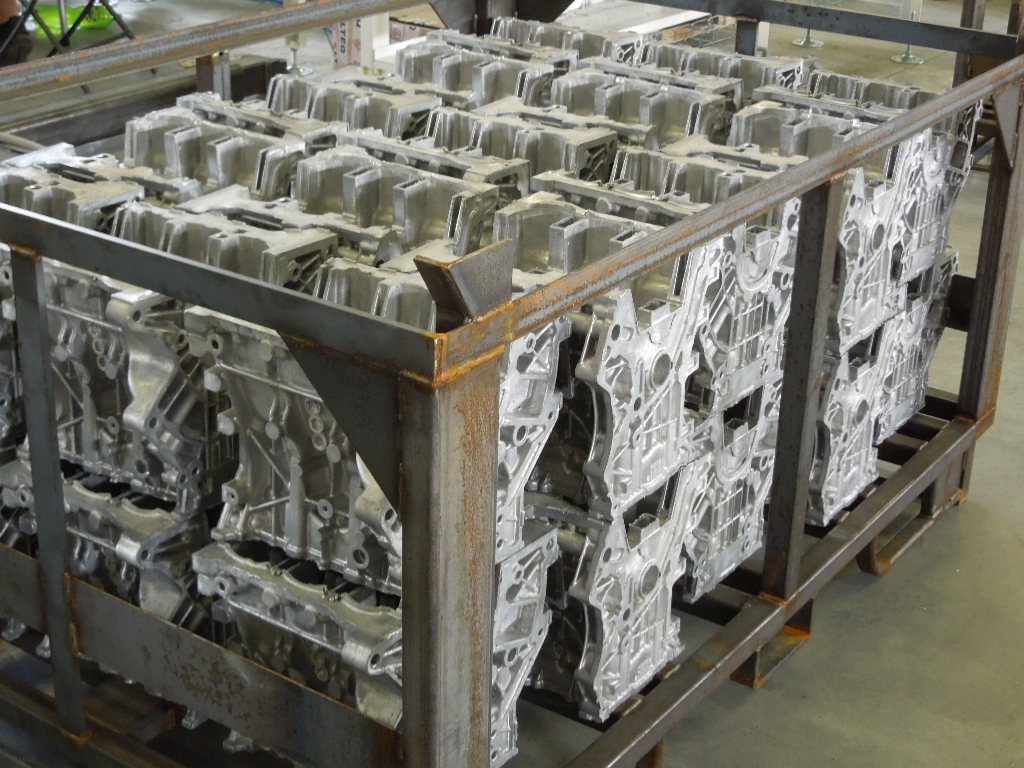

Palletizing engine blocks from casting machines. Some blocks are checked at the inspection station. IO parts are stored in a pallet with mandrels, two layers on top of each other without an interlayer. Bad ones are “thrown” into the bad bin. |
| Guaranteed device speed | 90 sec |
| Manipulated goods – dimensions, weights, orientation at the entrance of the Atrima interface | Engine Block |
| Number of products per layer | Three-cylinder: 15
Four cylinders: 10 |
| Number of layers | 2 |
| Interleaves- size, number and location on the pallet | Without interleaves |
| The height of the spherical workplace | 850-900 mm |
| Change an assortment | Automatic |
