Engine block palletization

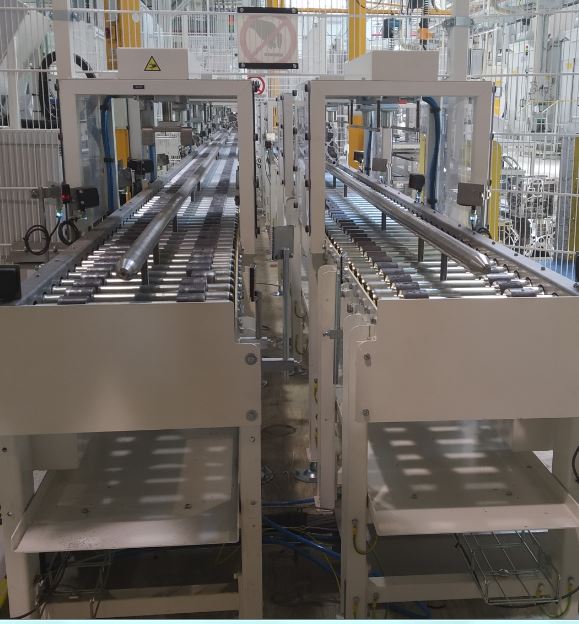

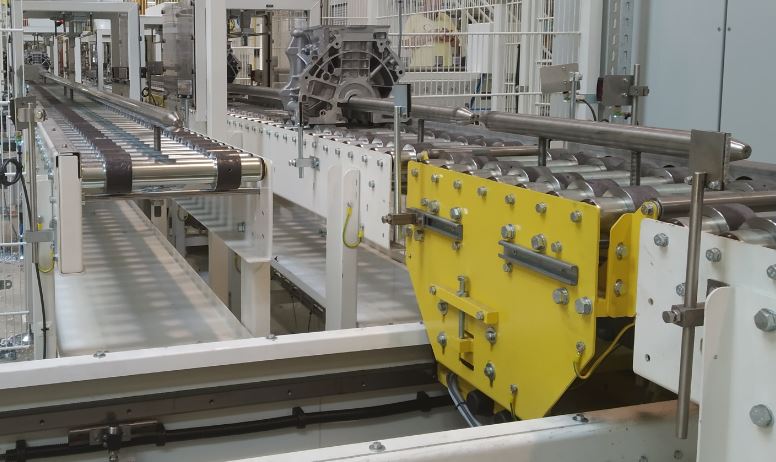

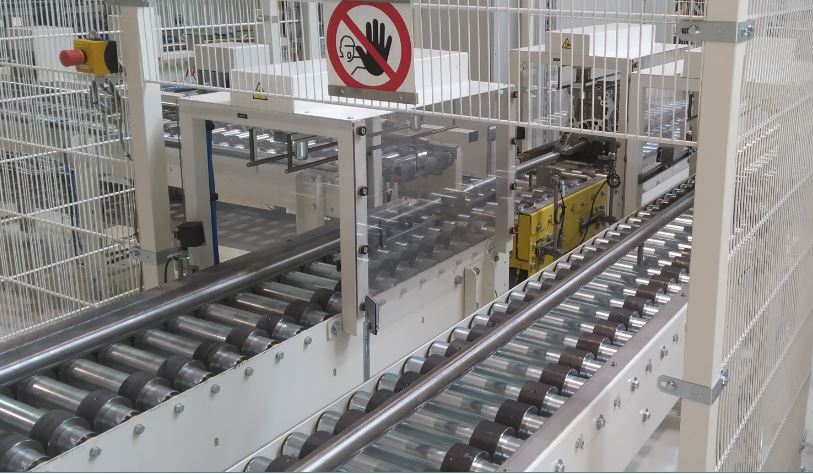

ROBUST ROLLER CONVEYORS FOR TRANSPORT AND PALLETIZATION OF ENGINE BLOCK.
ADVANTAGES : ROBUST DESIGN, RELIABILITY, HIGH PERFORMANCE, PRECISION
Palletization assembly for the automotive industry.
| Základní popis | Engine block palletization |
| Výkon plniče | Cycle 20 sec/block |
| Guaranteed device performance | 20 sec/block |
| Handled goods – dimensions, weights, orientation on Atrima interface input | Three-cylinder and four-cylinder engine blocks
Blocks are removed from the roller conveyor |
| Pallet orientation, pallet composition | Place the bottom interleave on the pallet, 4 layers of blocks interspaced with interleaves. |
| Number of products on the layer | 12pcs three-cylinder |
| Number of layers | 4 |
| Stackers of Interleaves | The anticipated supply is 80 interleaves. |
| Change of assortment 20 sec/block | Automatic |
The line will be ready to operate in two basic modes:
- in the mode of transporting blocks from conveyor A to conveyor B using a turntable and
- in block palletizing mode using KUKA robots
