Automatic rack storage with stackers
LOADER AND UNLOADER from Atrima – saving manpower, space, time and money.
Effective solutions to optimize processes, not only in the food industry.

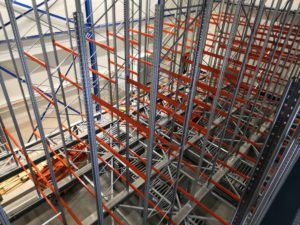

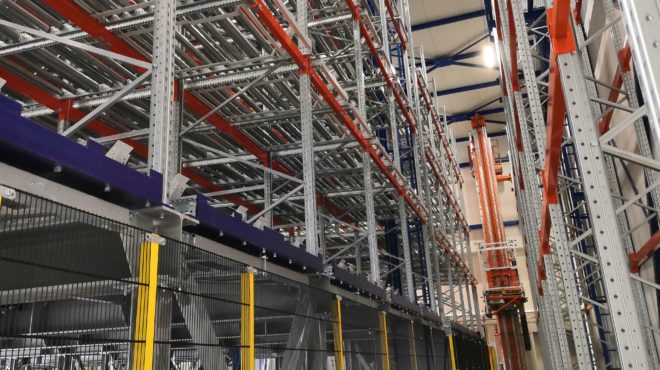

| Automatic rack storage of pallets | |
| Basic specifications | Automatic rack storage of FIFO pallets. Consists of: – Mezzanine – Racking system with gravity conveyors – Racking system for storing static pallet – Automatic pallet stacker and unloader – Return branch of driven roller conveyors, conveyors for loading and unloading pallets – Barcode readers – Communication via OPC server |
| Warehouse performance | 30 pallets/hour |
| Manipulated goods – dimensions, weights, orientation at the entrance of the Atrima interface |
Pallet EURDimensions 1200 mm x 800 mm x 145 mm.
Maximum weight of an empty pallet: 25 kg |
| Maximum weight of full pallet including pallet
Minimum weight of full pallet including pallet |
670 kg
150 kg |
| Maximum height of the full pallet, including the pallet | 1450 mm |
| Pallet identification | Using a barcode reader. The reader is supplied and integrated by Atrima. Connected to the Atrima control system. |
| Assortment change | Automatically |
